Ball Bearing Hinge for Gates - Low Type
I.B.F.M.
Art. 848-849B

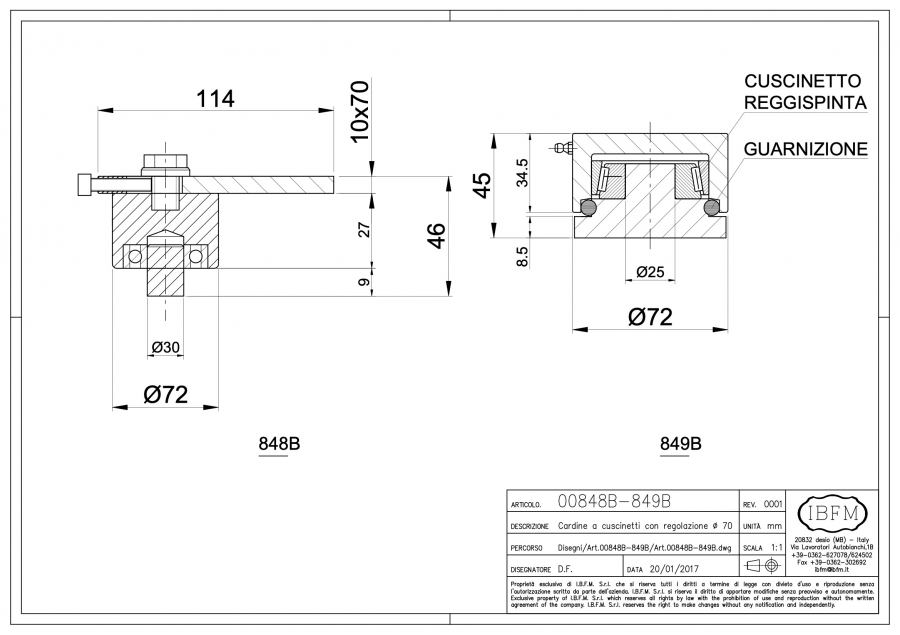

Ball Bearing Hinge for Gates - Low Type
Technical information
Heavy duty lower+upper hinges Ø70mm. This assembly is designed to manage both radial and axial loads, even in the most unforgiving conditions. ...more
Print pageItem code | Finishing |
---|---|
848849B | Galvanized Steel |
848B | Galvanized Steel |
849B | Galvanized Steel |
Item code | Ø | UM | Q.ty | Kg | Capacity (Kgx2pcs) |
---|---|---|---|---|---|
848849B |
70mm | CP | 1 | 2,800 | 1000 |
848B |
70mm | PZ | 2 | 3,840 | 1000 |
849B |
70mm | PZ | 2 | 2,640 | 1000 |
