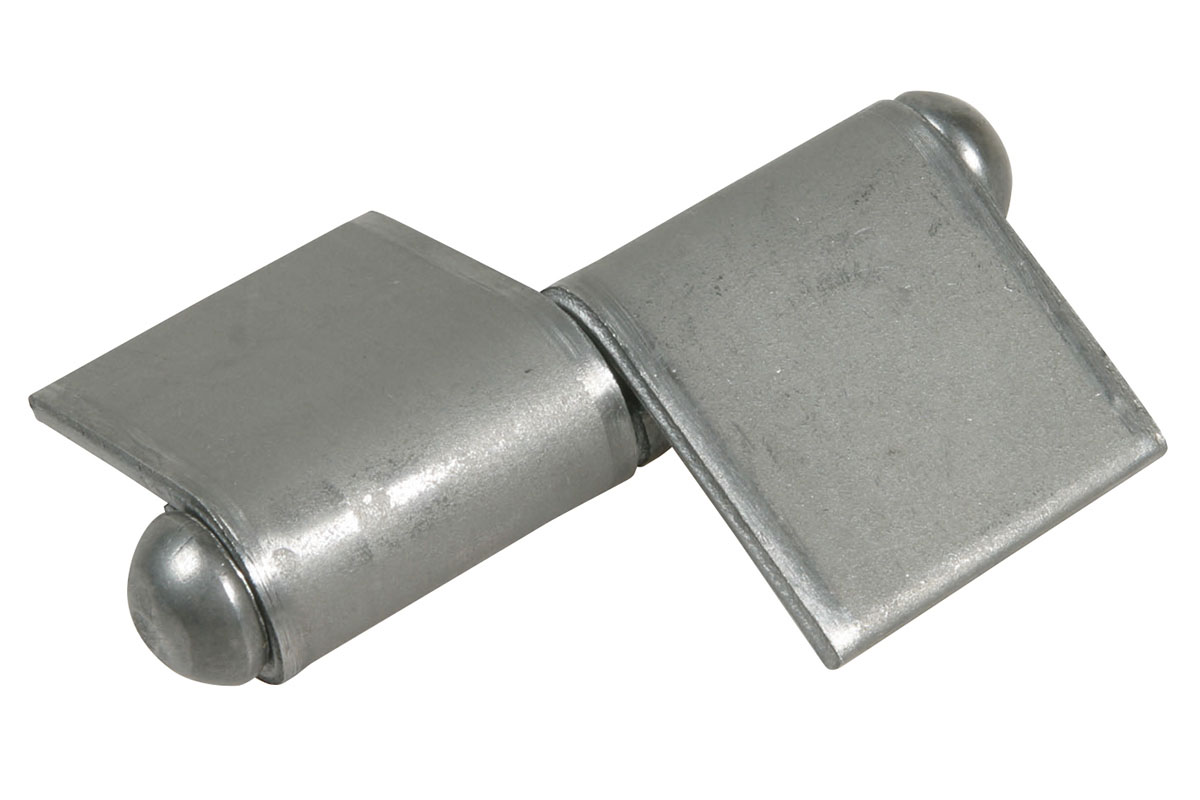

Hinge to Weld with Fixed Pin
I.B.F.M.
Art. 495
Hinge to Weld with Fixed Pin
Technical information
Welding hinges to be welded ao metal swinging doors, gates, openings.
During the welding process pay great attention on not deforming or damage both the product and the support profile avoiding overheating. Check the strength of the welding before installing the assembly.
Print page
| Item code | Finishing |
|---|---|
| 495060DX | Natural Steel |
| 495060SX | Natural Steel |
| 495080DX | Natural Steel |
| 495080SX | Natural Steel |
| 495100DX | Natural Steel |
| 495100SX | Natural Steel |
| 495120DX | Natural Steel |
| 495120SX | Natural Steel |
| 495140DX | Natural Steel |
| 495140SX | Natural Steel |
| 495160DX | Natural Steel |
| 495160SX | Natural Steel |

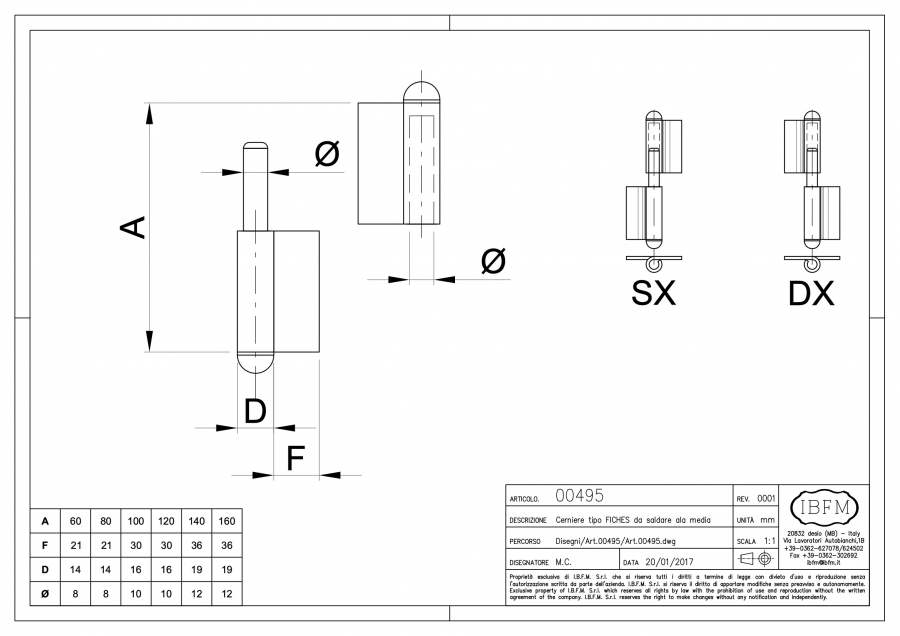

| Item code | A | UM | Q.ty | Kg | Capacity (Kgx2pcs) |
|---|---|---|---|---|---|
|
495060DX |
60mm | PZ | 20 | 2,060 | 20 |
|
495060SX |
60mm | PZ | 20 | 2,060 | 20 |
|
495080DX |
80mm | PZ | 20 | 2,600 | 40 |
|
495080SX |
80mm | PZ | 20 | 2,600 | 40 |
|
495100DX |
100mm | PZ | 10 | 2,590 | 50 |
|
495100SX |
100mm | PZ | 10 | 2,590 | 50 |
|
495120DX |
120mm | PZ | 10 | 3,110 | 60 |
|
495120SX |
120mm | PZ | 10 | 3,110 | 60 |
|
495140DX |
140mm | PZ | 10 | 4,820 | 60 |
|
495140SX |
140mm | PZ | 10 | 4,820 | 60 |
|
495160DX |
160mm | PZ | 10 | 5,500 | 80 |
|
495160SX |
160mm | PZ | 10 | 5,500 | 80 |
