Safety Cable for Swinging Gates
I.B.F.M.
Art. 540

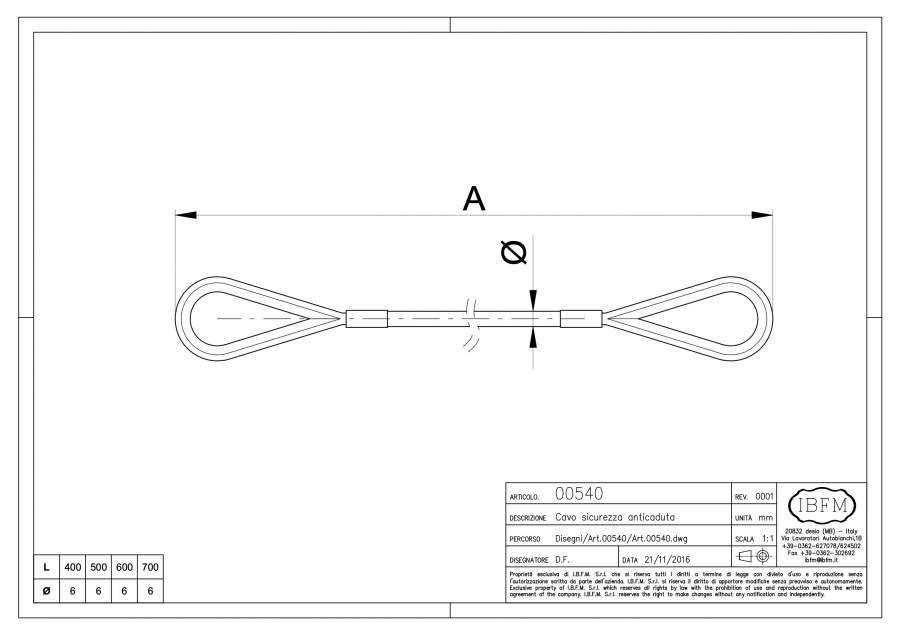

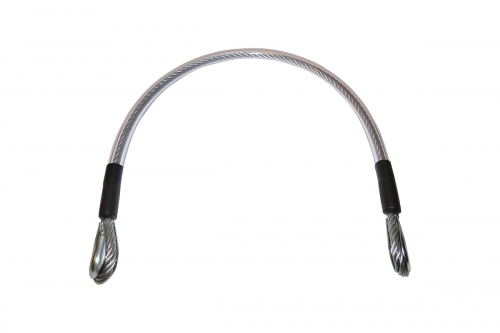

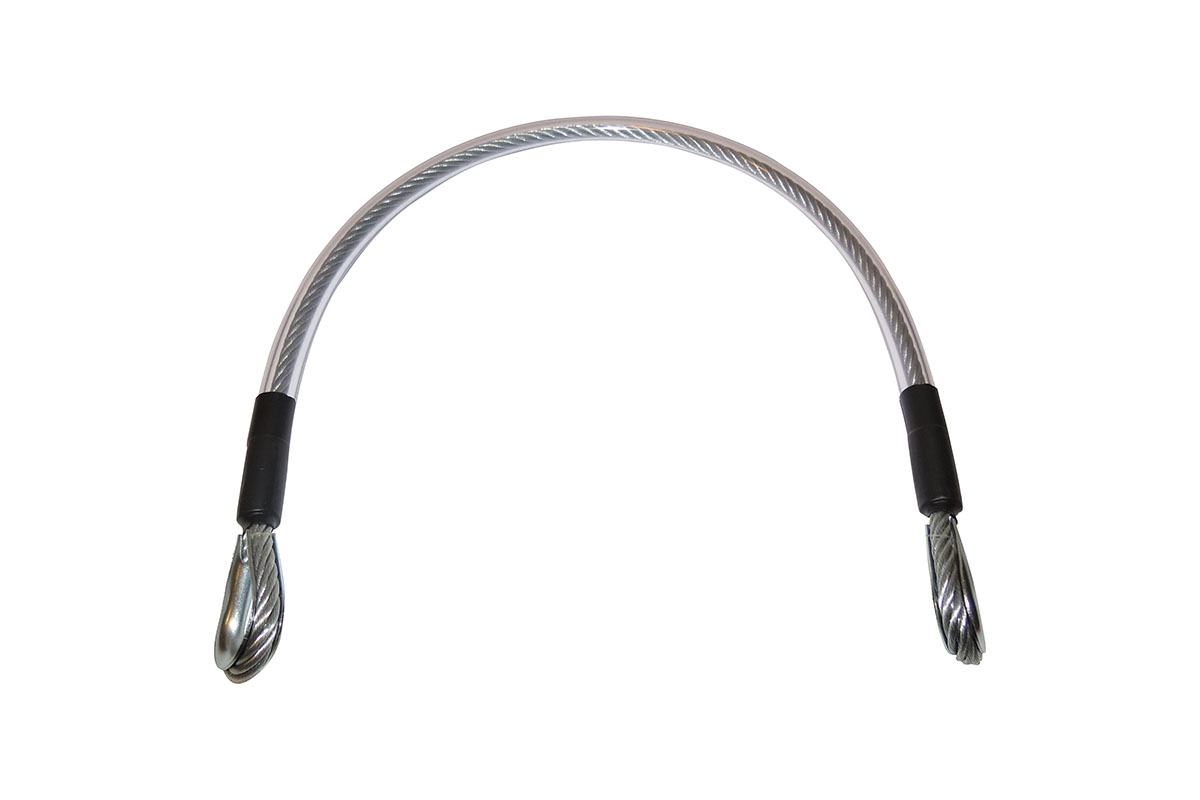

Safety Cable for Swinging Gates
Technical information
Safety cable for swinging gates.Used to prevent the fall of the gate itself in case of emergency/hinge failure. Do not performing welding actions on the gate after the cable is installed. It can cause internal damages in the cable, resultly in a decrease of the performance or ever a breakdown the product when needed. ...more
Print pageItem code | Finishing |
---|---|
540400 | Galvanized Steel |
540520 | Galvanized Steel |
540600 | Galvanized Steel |
540700 | Galvanized Steel |
Item code | L | UM | Q.ty | Kg | Capacity |
---|---|---|---|---|---|
540400 |
400mm | PZ | 1 | 0,180 | 1000 |
540520 |
500mm | PZ | 1 | 0,190 | 1000 |
540600 |
600mm | PZ | 1 | 0,200 | 1000 |
540700 |
700mm | PZ | 1 | 0,200 | 1000 |
