Pasador Redondo con Porta Candado
I.B.F.M.
Art. 22
Pasador Redondo con Porta Candado
Informazioni aggiuntive

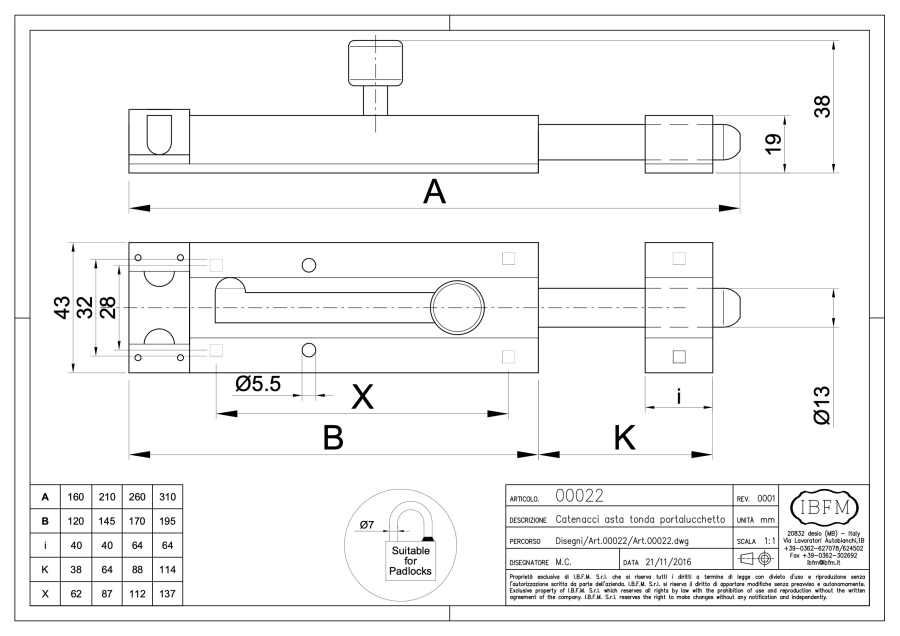

Safety horizontal heavy duty round bolt with staple and with exposed fixing screws, to be screwed. To be used in order to lock drawers, openings, door or gate leaves. Suitable to be screwed on wood, aluminum or metal surfaces.
The functioning is assured by operating on the bar. The stability of the closing is assured by the hidden spring which keeps in position the closing bar. For added security it is possible to apply a padlock to the bolt.
| Código del artículo | Acabado |
|---|---|
| 022150B | En Hierro Pintado Marrón |
| 022150V | En Hierro Bicromatado |
| 022150Z | En Hierro Cingado |
| 022200B | En Hierro Pintado Marrón |
| 022200V | En Hierro Bicromatado |
| 022200Z | En Hierro Cingado |
| 022250B | En Hierro Pintado Marrón |
| 022250V | En Hierro Bicromatado |
| 022250Z | En Hierro Cingado |
| 022300B | En Hierro Pintado Marrón |
| 022300V | En Hierro Bicromatado |
| 022300Z | En Hierro Cingado |
| Código del artículo | A | UM | Q.ta | Kg |
|---|---|---|---|---|
|
022150B |
150mm | PZ | 10 | 3,440 |
|
022150V |
150mm | PZ | 10 | 3,350 |
|
022150Z |
150mm | PZ | 10 | 3,350 |
|
022200B |
200mm | PZ | 10 | 4,190 |
|
022200V |
200mm | PZ | 10 | 4,160 |
|
022200Z |
200mm | PZ | 10 | 4,160 |
|
022250B |
250mm | PZ | 10 | 5,590 |
|
022250V |
250mm | PZ | 10 | 5,590 |
|
022250Z |
250mm | PZ | 10 | 5,590 |
|
022300B |
300mm | PZ | 10 | 6,000 |
|
022300V |
300mm | PZ | 10 | 6,000 |
|
022300Z |
300mm | PZ | 10 | 6,000 |
