Cerniera Tornita a Goccia
I.B.F.M.
Art. 914
Cerniera Tornita a Goccia
Informazioni tecniche

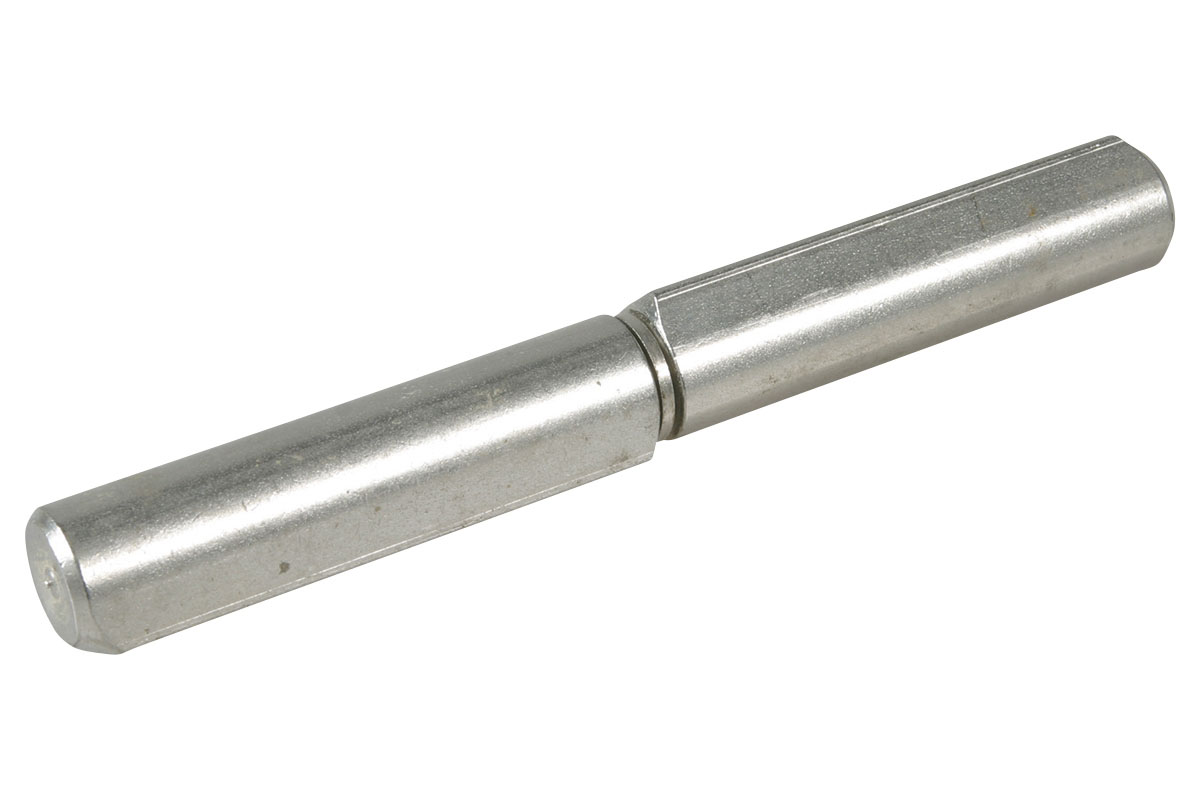

Welding hinge to be welded on metal swinging doors. To be used in order to open very heavy metal gates, openings or door leaves.
During the welding process pay great attention on not deforming or damage both the product and the support profile avoiding overheating. Check the strength of the welding before installing the assembly.
Stampa pagina
| Codice articolo | Finitura |
|---|---|
| 914040 | In Acciaio Inox |
| 914060 | In Acciaio Inox |
| 914080 | In Acciaio Inox |
| 914100 | In Acciaio Inox |
| 914120 | In Acciaio Inox |
| 914140 | In Acciaio Inox |
| 914160 | In Acciaio Inox |

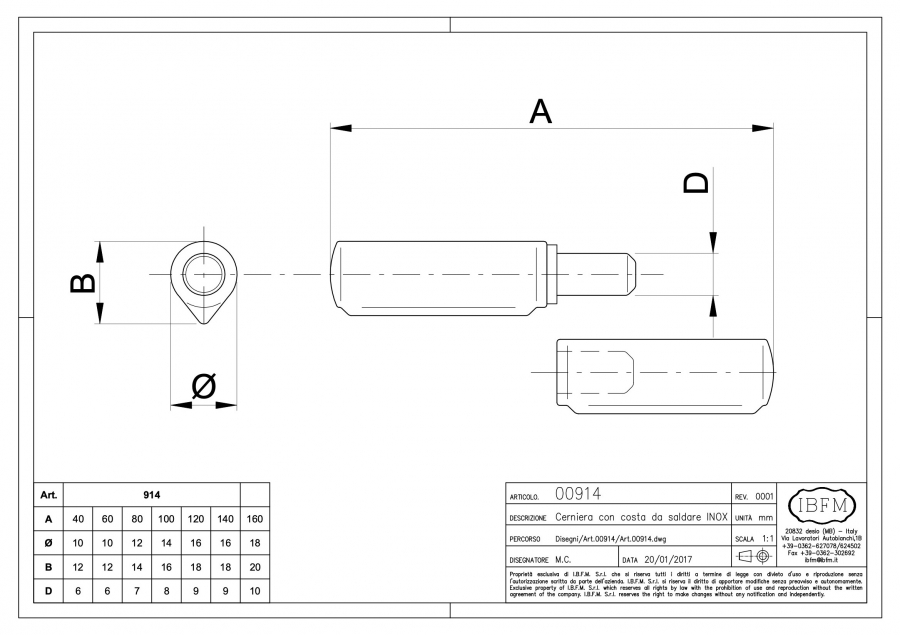

| Codice articolo | A | UM | Q.tà | Kg | Capacità (Kgx2pcs) |
|---|---|---|---|---|---|
|
914040 |
40mm | PZ | 24 | 0,650 | 20 |
|
914060 |
60mm | PZ | 24 | 0,900 | 20 |
|
914080 |
80mm | PZ | 24 | 1,750 | 40 |
|
914100 |
100mm | PZ | 24 | 3,000 | 50 |
|
914120 |
120mm | PZ | 24 | 4,700 | 60 |
|
914140 |
140mm | PZ | 24 | 5,400 | 60 |
|
914160 |
160mm | PZ | 12 | 3,920 | 80 |
