Cerniera Tornita a Goccia da Saldare
I.B.F.M.
Art. 414/ATGN
Cerniera Tornita a Goccia da Saldare
Informazioni aggiuntive

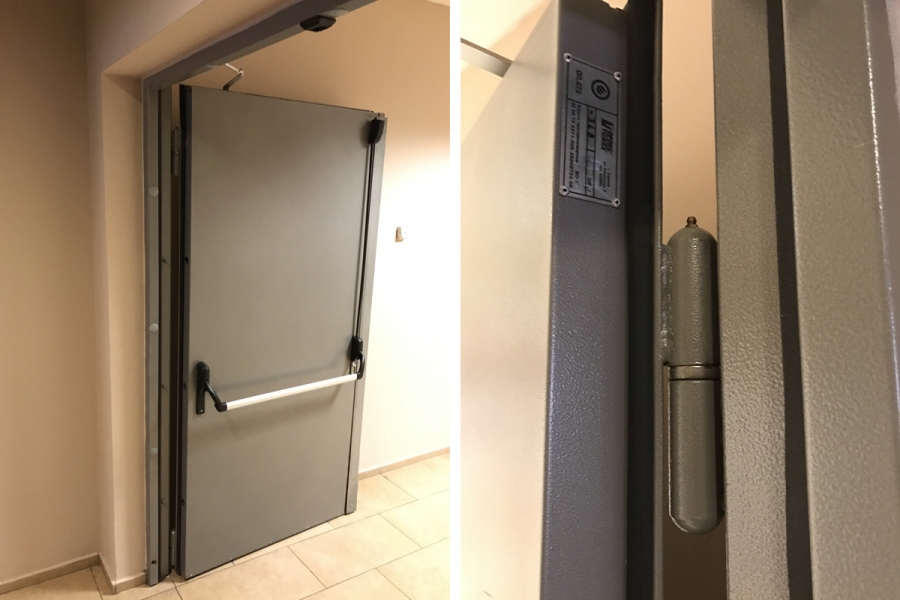

Welding hinge to be welded on metal swinging doors. To be used in order to open very heavy metal gates, openings or door leaves.
During the welding process pay great attention on not deforming or damage both the product and the support profile avoiding overheating. Check the strength of the welding before installing the assembly.
| Codice articolo | Finitura |
|---|---|
| 414080ATGN | Con Perno in Ferro e Ranella In Ottone |
| 414100ATGN | Con Perno in Ferro e Ranella In Ottone |
| 414120ATGN | Con Perno in Ferro e Ranella In Ottone |
| 414140ATGN | Con Perno in Ferro e Ranella In Ottone |
| 414160ATGN | Con Perno in Ferro e Ranella In Ottone |
| 414180ATGN | Con Perno in Ferro e Ranella In Ottone |
| 414200ATGN | Con Perno in Ferro e Ranella In Ottone |

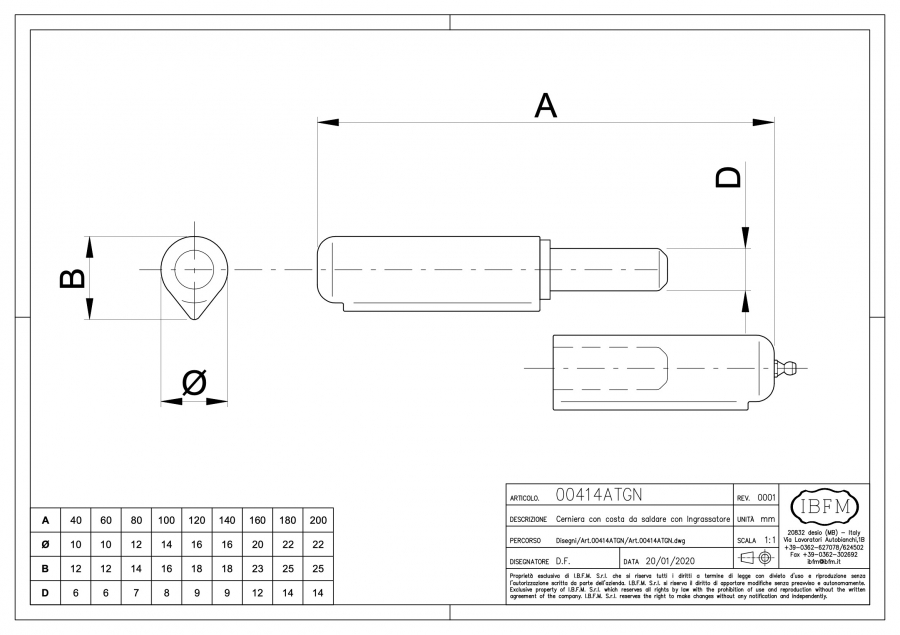

| Codice articolo | A | UM | Q.tà | Kg | Capacità (Kgx2pcs) |
|---|---|---|---|---|---|
|
414080ATGN |
80mm | PZ | 24 | 1,800 | 40 |
|
414100ATGN |
100mm | PZ | 24 | 2,900 | 50 |
|
414120ATGN |
120mm | PZ | 24 | 4,500 | 60 |
|
414140ATGN |
140mm | PZ | 24 | 5,400 | 60 |
|
414160ATGN |
160mm | PZ | 12 | 4,800 | 80 |
|
414180ATGN |
180mm | PZ | 12 | 6,400 | 100 |
|
414200ATGN |
200mm | PZ | 12 | 7,100 | 100 |
